A real-world example of BlackGround setup for speakers, with dimensions

Sunday 20 November, 2022

Dear esteemed clients,

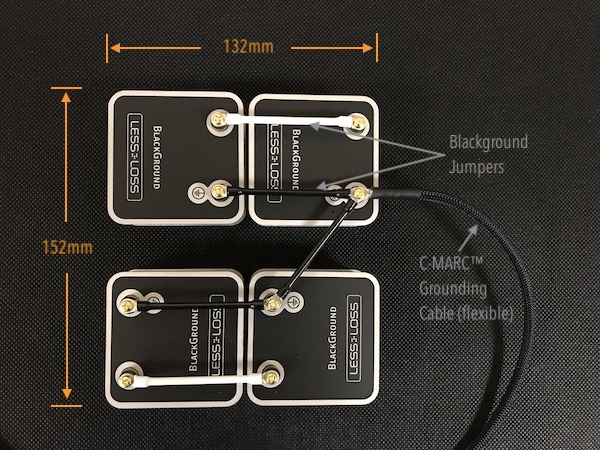

Here is how much room you would need if you'd choose this configuration of BlackGrounds for a single channel loudspeaker connection using our soon-to-be available BlackGround Jumpers.


LessLoss BlackGround


You could make this configuration smaller if you build your own jumper.

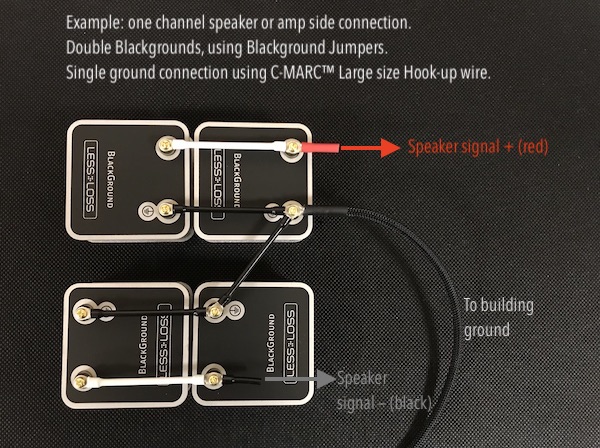

Below you see how the speaker signal would hook up to this configuration:


LessLoss BlackGround


As you can see, you can put three ring terminations onto one contact post.

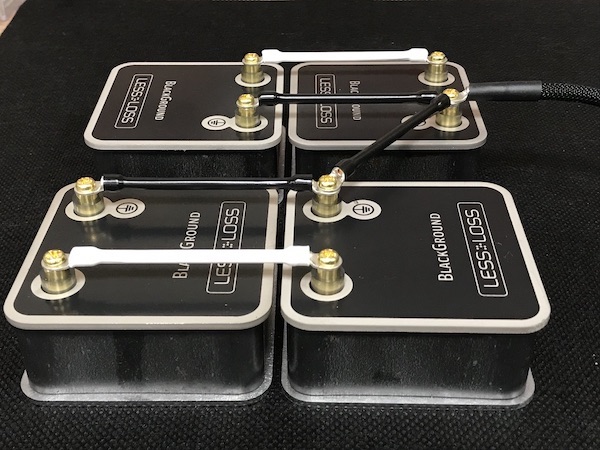

Here's the view from the side.


LessLoss BlackGround



Regards,

Louis Motek | LessLoss.com
